102957 | Riegler
2/2-way solenoid valve, NO, 0.2-16 bar, 24 V, 8 W, 102957
Order No.: 63G518
EAN: 4047322159708
MPN:
102957
MV 1394 G
Unit Price (€ / pc.)
153.3315 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
153.33 € *
Price list
Quantity
Price per unit*
1 pcs.
153.3315 €
3 pcs.
148.8214 €
5 pcs.
144.5612 €
*incl. VAT plus shipping costs
**Subject to prior sale

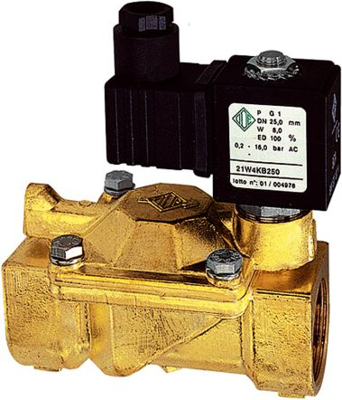

Solenoid valve, 102957, Riegler
The 102957 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position
Technical specifications
| Connection | cable plug PG 9/PG 11 | |
| Version | 2/2-way solenoid valve, NO | |
| Pressure range | 0.2-16 bar | |
| Power | 8 W | |
| Rated voltage | 24 V | |
| Nominal width | 25 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
