S2.30 110-265 V AC/DC | RO/SE
Heater, 110-265 V AC/DC, 30 W, (L x W x H) 75 x 78 x 45 mm, S2.30 110-265 V AC/DC
Order No.: 80H806
EAN: 4099889578430
MPN:
S2.30 110-265 V AC/DC
Unit Price (€ / pc.)
48.2664 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
48.27 € *
Price list
Quantity
Price per unit*
1 pcs.
48.2664 €
5 pcs.
45.8626 €
10 pcs.
44.0181 €
*incl. VAT plus shipping costs
**Subject to prior sale

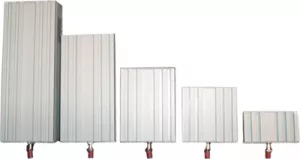

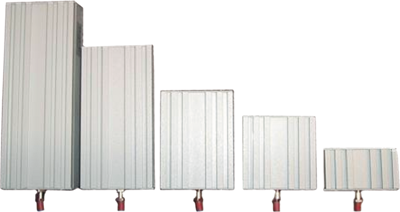

>Control cabinet heater, S2.30 110-265 V AC/DC, RO/SE
With cooling fin type heat convection on both sides (minimum panel thickness = 1.5 mm), for vertical and horizontal use, low mounting depth, variable snap-on mounting on DIN rail; Operating voltage: 110 to 265 V AC/DC. Degree of protection: IP 20. Case: aluminum, surface finished. Connection: 3 x 0.75 mm² heat-resistant cable (0.5 m) with metal strain relief. Fastening: aluminum clip for 35 mm DIN rail. Operating temperatures: -40 to +80 °C.
Size 75 x 78 x 45 mm, type S2.
Technical attributes (type, power): S2.30, 30 W
Technical specifications
| Ausführung | 110-265 V AC/DC, 30 W | |
| Breite | 78 mm | |
| Höhe | 45 mm | |
| Länge | 75 mm | |
| Produkt-Art | Heizung | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85162999 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
