TH-K | RO/SE

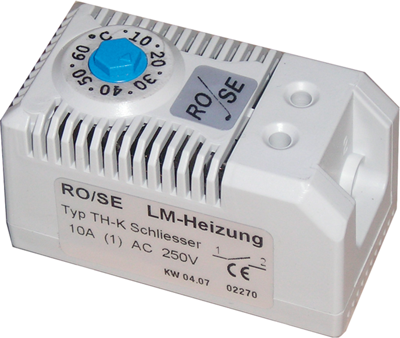

Thermostat, Form A (N/O), (L x W x H) 60 x 33 x 43 mm, TH-K
Order No.: 80H842
EAN: 4099889578560
MPN:
TH-K
Unit Price (€ / pc.)
14.1015 € *
Available: 35 pcs.
Leadtime: 1 Week **
Total Price:
14.10 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1015 €
10 pcs.
12.3998 €
50 pcs.
11.5668 €
150 pcs.
11.0551 €
500 pcs.
10.4958 €
*incl. VAT plus shipping costs
**Subject to prior sale
>Control cabinet thermostat, TH-K, RO/SE
Small design.
Adjustment range: 0 to +60 °C
Breaking capacity: 10 A/250 VAC, NC contact 12 to 24 VDC max. 3.0 A, NO contact 12 to 24 VDC max. 5.0 A
Degree of protection: IP 30
Connection: 2-pole terminal 2.5 mm²
Mounting: clip for 35 mm DIN rail
Thermal sensor element: bi-metal
Housing: plastic, UL 94 V-0
Dimensions: L 60, W 32, D 43 mm
Technical specifications
| Ausführung | schließer | |
| Breite | 33 mm | |
| Höhe | 43 mm | |
| Länge | 60 mm | |
| Zubehörart | Thermostat |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90321080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
