3593043902 | Rohde & Schwarz

Bench Power Supply, Adjustable, 3 Output, 0 V, 32 V, 0 A, 5.5 A

Order No.: 24K358
EAN: 4099891480417
MPN:
3593043902
HM7042-5
Rohde & Schwarz
3593043902 Rohde & Schwarz Bench Power Supplies and Loads
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Laboratory power supply, 32 VDC, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 100 W, 115-230 VAC, 5601.3800.03
Laboratory power supply, 32 VDC, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 100 W, 115-230 VAC, 5601.3800.03
Order No.: 20K7285
Manufacturer: Rohde & Schwarz
per pc. 1,392.30 € *
*incl. VAT plus shipping costs

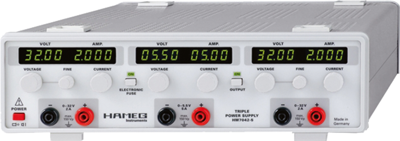

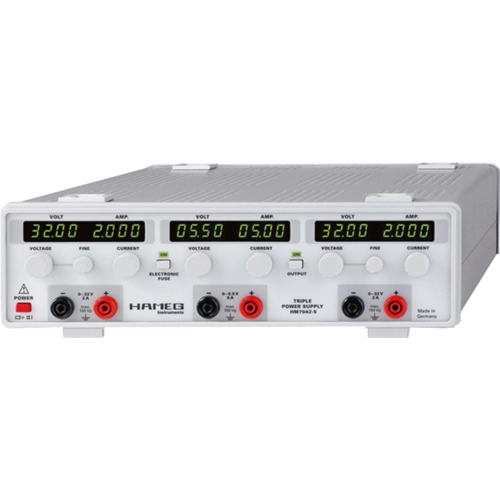

Triple power supplies or DC voltage regulators, type Hameg HM 7042.

Standard technology with linear control loop; Features: outputs 2 x 0 to 32 V/2.0 A and one additional output 0 to 5.5 V/5.0 A. Voltage outputs ungrounded, adjustable current limiting, output power up to 156 W. The unit can be operated in parallel or in series. Outputs can be switched off by key input. Thermal protection circuit, temperature-controlled fan, 3 1/2-digit 7-segment digital display for current and voltage. Adjustment range: linear, with separate rough and fine adjustment knobs. Resolution: 10 mV or 1.0 mA . Constant voltage/constant current modes. Settling time: maximum 80 µs. Residual ripple: 100 µV. Safety class (IEC 1010-1): class 1. Operation: 115/230 V ±10 %/50 to 60 Hz. Power consumption: 330 VA. Operating temperatures: 0 to +40 °C. Dimensions in mm: W 285, H 75, D 365. Weight: approx. 7.4 kg.

Type: HM 7042, power supply

Technical specifications
Number of outputs 3
Output voltage DC 32 VDC
Output current 5 A
Output current 2 2 A
Output current 3 2 A
Width 285 mm
Input voltage AC 115-230 VAC
Height 75 mm
Power 156 W
Depth 365 mm
Range of Output Currence 0 to 5 A
Logistics
Country of origin DE
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
