1333.1005P04 | Rohde & Schwarz
4-channel oscilloscope 1333.1005P04, 70 MHz, 2.5 GSa/s, 10.1'' color display, 5 ns
Unit Price (€ / pc.)
2,963.10 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

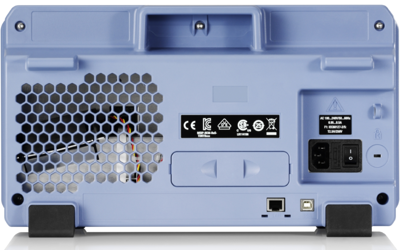

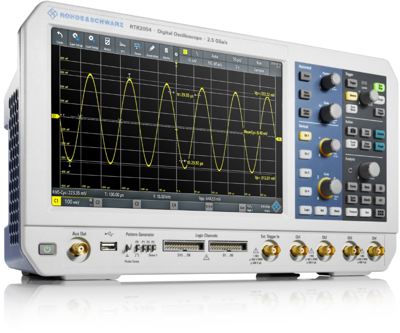

Oscilloscope, 1333.1005P04, Rohde & Schwarz
Rohde & Schwarz RTB2K-74M MSO Oscilloscope 70MHz 4 Channels. It is characterized by a 10bit digital analogue converter (ADC), a 10.1 "touch screen display and a 10Mpts memory depth.
Features
- Bandwidth: 70/100/200/300 MHz
- Sample rate: up to 2.5 Gsample/s
- Memory depth: up to 20 Msample
- ADC resolution: 10 bit
Technical specifications
| Sample Rate | 2.5 GSa/s | |
| Rise time | 5 s | |
| Number of channels | 4 | |
| Display | 10.1'' color display | |
| Version | oscilloscope | |
| Bandwidth | 70 MHz | |
| Width | 390 mm | |
| Weight | 2.5 kg | |
| Height | 220 mm | |
| Category | Cat II, Cat III, Cat IV | |
| Length | 152 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 90302000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
