1333.1005P25 | Rohde & Schwarz
4-channel oscilloscope 1333.1005P25, 200 MHz, 2.5 GSa/s, 10.1'' color display, 5 ns
Order No.: 20K7174
EAN: 4250138105245
MPN:
1333.1005P25
RTB2K-204M (RTB2004 + RTB-B242 + RTB-B1)
Series: RTB2000
Unit Price (€ / pc.)
5,426.40 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

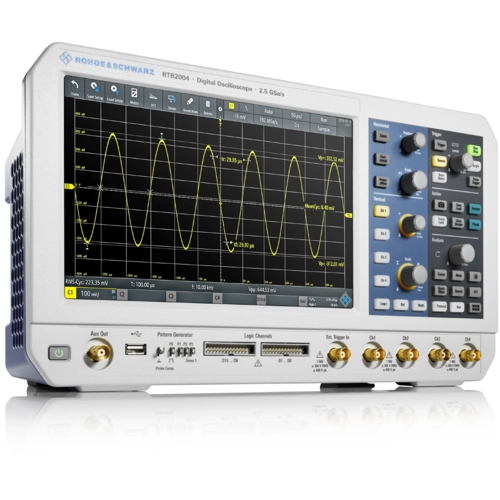

Oscilloscope, 1333.1005P25, Rohde & Schwarz
Premium 4 channel oscilloscope with 200 MHz Bandwidth, 2.5 GSa/s sample rate, 10 Bit A/D converter, 20 Mpts memory depth and a 25.7 cm touchdisplay (1280x800 pixel). Incl. MSO option with 16 channel logic analyzer. Upgradable with a 1 channel waveform generator and pattern generator.
Technical specifications
| Abtastrate | 2,5 GSa/s | |
| Anstiegszeit | 5 s | |
| Anzahl der Kanäle | 4 | |
| Anzeige | 10,1'' Farbdisplay | |
| Ausführung | Oszilloskop | |
| Bandbreite | 200 MHz | |
| Breite | 390 mm | |
| Gewicht | 2.5 kg | |
| Höhe | 220 mm | |
| Kategorie | Cat II, Cat III, Cat IV | |
| Länge | 152 mm |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 90302000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
