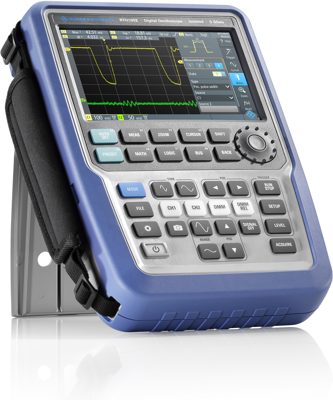

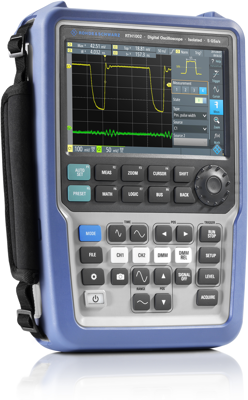

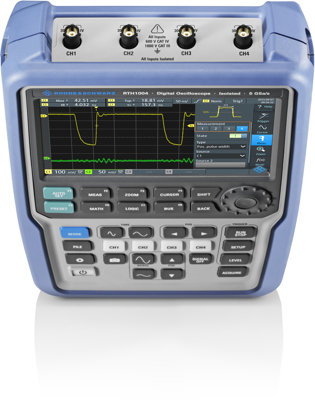

Rohde & Schwarz RTH-COM4C Complete Bundle RTH Scope Rider, 4 + 8 Channel Mixed-Signal Oscilloscope, Bandwidth 500 MHz, 5 GSa/s, fully loaded with all available options. The RTH1004 from Rohde & Schwarz is a ScopeRider 60MHz, 4 channel handheld digital oscilloscope with protocol analyzer. With the power of eight instruments, R&S®ScopeRider offers the performance and capabilities of a lab oscilloscope as well as the form factor and ruggedness of a battery operated handheld device. The R&S®ScopeRider is the first isolated handheld digital oscilloscope with trigger and decode capability for in-depth troubleshooting on CAN/LIN buses. You can trigger on protocol Events or data to selectively acquire relevant events, data and signals. Capturing and analyzing rare anomalies in electric signals is a typical use case when debugging electronic systems. With an acquisition rate of up to 50000 waveforms per second more than 1000 times faster than conventional handheld oscilloscopes. This 7" 800 x 480 pixel capacitive touch oscilloscope is a combination of RTH1004 and RTH-B1 RTH-B1 is 250MHz mixed signal option). Device is safer in line with IEC/EN/DIN • 500K sample memory depth, 50000 waveforms per second, 5G sample/s sampling rate • Automatic measurement functions, multifunction wheel • 10bit ADC & 9bit vertical resolution of overall system • Wireless LAN and Ethernet for web based remote control and quick data access • MicroSD card and USB device/host support • Isolated channels CAT IV 600V/CAT III 1000V • IP51 rugged, dust and water resistant housing • VDE, CCSAUS and KC certified • 72Wh, 11.25V lithium-ion rechargeable smart battery with 4h operating time • Dimension of 201mm x 293mm x 74mm, weight with battery is 2.4Kg • Saver bundle - up to 37% off, already included in price
Options included in this bundle: Mixed Signal upgrade, I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN, CAN-FD, SENT serial triggering and decoding, spectrum analysis, frequency counter, advanced trigger, harmonic analysis, wifi, remote control, history and segmented memory with 25 Msample
