R&S®RTO/RTE/RTH oscilloscopes support triggering and decoding of the CAN flexible data rate (CAN-FD) extension, including CAN DBC file import. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and in a table. Errors are identified efficently using the hardware-accelerated trigger. You can trigger on start of frame, frame ID, data and various error conditions.

Features

• Symbolic decoding for CAN and CAN-FD addresses, including industry-standard CAN DBC file support

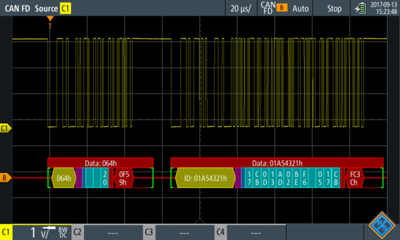

• Telegram display as color-coded bus signals and in decode table

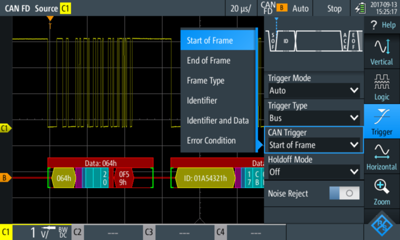

• Trigger on start of frame, frame ID, data and various error conditions
• On-screen serial decoding is time-correlated with the serial data waveform
• Fastest CAN and CAN-FD eye-diagram mask testing with standard mask test functionality
