1326.3835.03 | Rohde & Schwarz
Option, triggering/decoding for handheld oscilloscope RTH1002/RTH1004, 1326.3835.03
Unit Price (€ / pc.)
2,023.00 € *
Available: 0 pcs.
Leadtime: On Request **
Triggering and decoding, 1326383503, Rohde & Schwarz
R&S®RTO/RTE/RTH oscilloscopes support triggering and decoding, including symbolic decoding. You can set up decoding in seconds. For analysis, results can be viewed as color-coded telegrams and in a table. Errors are identified efficently using the hardware-accelerated trigger. You can trigger on fast channel (calibration, sync, status, data), slow channel (ID and data) and various error conditions.
Features
- Decode in different formats, including fast and slow serial messages, e.g. in HEX, binary or unsigned format
- Symbolic decoding support to show messages in physical units, e.g. temperature or pressure

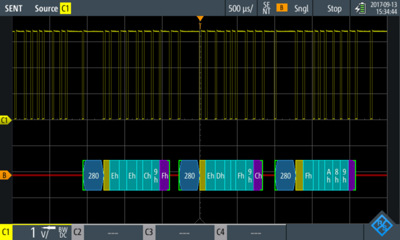

- Display of fast and slow (short and enhanced) serial messages as two separate color-coded bus signals as well as in tabular format

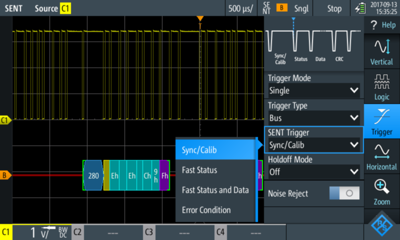

- Flexible trigger capability on fast and slow channel. Trigger on various error conditions, including fast and slow channel CRC errors, timing and pulse period errors
- Support of the different CRC checksum calculations in line with TLE 4998X and SAE J2716, v2008 and v2010
Technical specifications
| Accessory Type | Option | |
| Version | Triggerung/Dekodierung | |
| Suitable for | Handheld-Oszilloskop RTH1002/RTH1004 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 49111090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
