520 1190 | ROKA

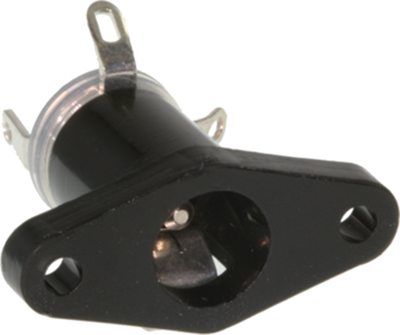

DC panel-mount switched socket, 6.6 mm, 1,9 mm, 520 1190
Order No.: 40F134
EAN: 4099889874440
MPN:
520 1190
Unit Price (€ / pc.)
1.6065 € *
Available: 315 pcs.
Leadtime: 10 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4637 €
100 pcs.
1.3090 €
500 pcs.
1.2138 €
1000 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply chassis sockets to DIN 45323, type 520.
2-pole, black plastic housing; Rated voltage: 34 VDC. Current rating: 3.0 A.
Technical attributes (type, dimension A): 520 1190, A 15 mm
Technical specifications
| Connection | solder connection | |
| Version | panel switch socket | |
| Outer diameter | 6.6 mm | |
| Colour | black | |
| Inner diameter | 1.9 mm | |
| Hole diameter | 2.1 mm | |
| Assembly | PCB mounting | |
| Rated voltage | 34 V | |
| Rated current | 3 A | |
| Shaft length | 15 mm | |
| With bend protection | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
