010606030 | Rose
Aluminum enclosure, (L x W x H) 58 x 64 x 34 mm, silver gray (RAL 7001), IP66, 010606030
Order No.: 60H100
EAN: 4099889516500
MPN:
010606030
Unit Price (€ / pc.)
17.4454 € *
Available: 13 pcs.
Leadtime: On Request **
Total Price:
17.45 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4454 €
10 pcs.
16.5767 €
50 pcs.
15.7437 €
*incl. VAT plus shipping costs
**Subject to prior sale

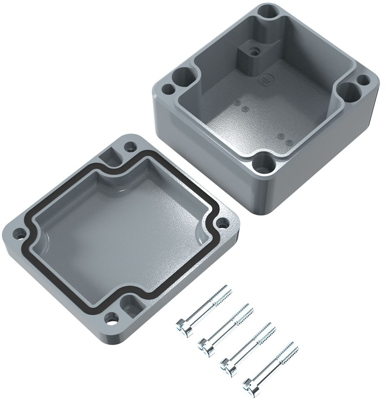

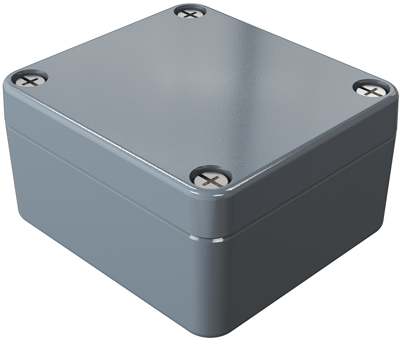

Aluminum enclosures, type Rose 01.
Rugged aluminum enclosure for use in the mechanical engineering and automation sector. Tongue-and-groove sealing system (all-round in the lid grooves). The screw channels are located outside of the sealing space. The mounting threads in the base bars facilitate the simple installation of mounting rails, switchgear, terminal blocks, etc; Material: DIN EN 1706 EN AC-AlSi 12 (Fe), powder coated. Seal: PU foam. Degree of protection to DIN 60529: IP 66. Impact resistance to EN 60079-0: 7.0 Joules. Color: silver-gray RAL 7001. Operating temperatures: -40 to +90 °C.
Technical attributes (type, outer dimensions, lid height (Lh), size of outside mounting strap): 01.06 06 03, W 64, L 58, H 34 mm, Lh 9.0, M 4
Technical specifications
| Width | 64 mm | |
| Colour | silver gray | |
| Height | 34 mm | |
| Length | 58 mm | |
| Material | aluminum | |
| RAL number | 7001 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
