012333180 | Rose
Aluminum enclosure, (L x W x H) 330 x 230 x 180 mm, silver gray (RAL 7001), IP66, 012333180
Order No.: 60H1198
EAN: 4099889516784
MPN:
012333180
Unit Price (€ / pc.)
278.2458 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
278.25 € *
Price list
Quantity
Price per unit*
1 pcs.
278.2458 €
3 pcs.
264.3347 €
10 pcs.
251.1257 €
*incl. VAT plus shipping costs
**Subject to prior sale

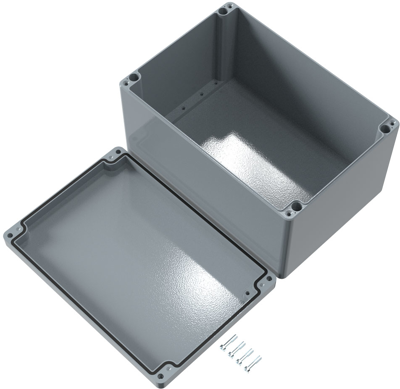

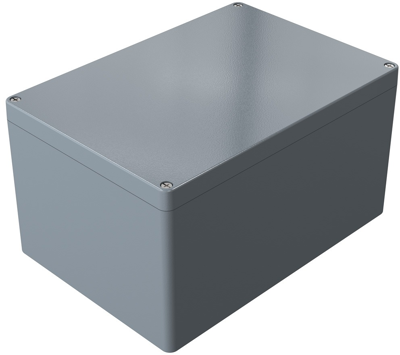

Aluminum enclosures, type Rose 01.
Rugged aluminum enclosure for use in the mechanical engineering and automation sector. Tongue-and-groove sealing system (all-round in the lid grooves). The screw channels are located outside of the sealing space. The mounting threads in the base bars facilitate the simple installation of mounting rails, switchgear, terminal blocks, etc; Material: DIN EN 1706 EN AC-AlSi 12 (Fe), powder coated. Seal: PU foam. Degree of protection to DIN 60529: IP 66. Impact resistance to EN 60079-0: 7.0 Joules. Color: silver-gray RAL 7001. Operating temperatures: -40 to +90 °C.
Technical attributes (type, outer dimensions, lid height (Lh), size of outside mounting strap): 01.23 33 18, W 230, L 330, H 180 mm, Lh 20, M 6
Technical specifications
| Breite | 230 mm | |
| Farbe | silbergrau | |
| Höhe | 180 mm | |
| Länge | 330 mm | |
| Material | Aluminium | |
| RAL-Farbnummer | 7001 | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
