077110000 | Rose
AW+AIMgSi enclosure, (L x W x H) 50 x 185 x 105 mm, black, IP40, 077110000
Unit Price (€ / pc.)
31.9753 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.98 € *
Price list
Quantity
Price per unit*
1 pcs.
31.9753 €
5 pcs.
30.3688 €
10 pcs.
28.8456 €
50 pcs.
27.4176 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rack enclosures made of aluminum, type Rose Multitronic.
EMC compliant version, with PCB guides and mounting groove with spring-cage nuts on the outside; PCB dimensions: max. 100 x 180 mm. Degree of protection: IP 40. Material: AW-AIMgSi, powder coated. Color: black. Thermal resistance: -40 to +100 °C.
With 4 mounting grooves.

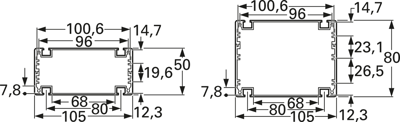

Technical attributes (type, PCB guides LF): 77.11 00 00, W 105 x L 185 x H 50 mm, 2 LF
Technical specifications
| Width | 185 mm | |
| Colour | black | |
| Height | 105 mm | |
| Length | 50 mm | |
| Material | AW+AIMgSi | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
