RE01-LF-DS | Roth Elektronik

Name: Unperforated copper-clad panel, 100 x 160 mm, double-sided, FR4 epoxy, Cu 35 µm, RE01-LF-DS
Brand: Roth Elektronik
SKU: 12H196
Price: 6.02 EUR
Availability: InStock

Unperforated copper-clad panel, 100 x 160 mm, double-sided, FR4 epoxy, Cu 35 µm, RE01-LF-DS

Order No.: 12H196

EAN: 4099889463897

MPN:

RE01-LF-DS

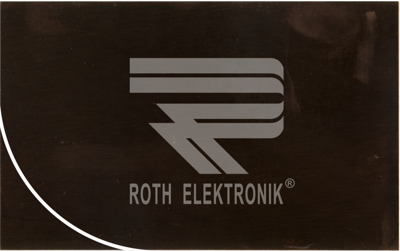

Image may differ

Key Specification:

Version unperforated copper-clad panel

One / two-sided double-sided

Material FR4 epoxy

Throughplated No

Download Datasheet Technical specifications

Discontinued

Unit Price (€ / pc.)

6.0214 € *

Available: 8 pcs.

Leadtime: On Request **

Total Price:

6.02 € *

Price list

Quantity

Price per unit*

1 pcs.

6.0214 €

10 pcs.

5.2836 €

100 pcs.

4.6410 €

250 pcs.

4.4625 €

1000 pcs.

4.1769 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Copper-plated board, RE01-LF-DS, Roth Elektronik

Single- or double-sided copper plating (35 µm), non-perforated; Substrate material: epoxy fiber-glass FR4. Size: 100.2 x 160.15 mm. Board thickness: 1.5 mm.

Type: RE01-LF-DS, double-sided copper plating.

Technical specifications

	Version	unperforated copper-clad panel
	Width	160 mm
	Throughplated	No
	One / two-sided	double-sided
	Height	1.5 mm
	copper strength	35 m
	Length	100 mm
	Material	FR4 epoxy
	Surface type	hot air leveling (HAL)
