RE100-HP | Roth Elektronik
Circuit breadboard, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE100-HP
Order No.: 11H200
EAN: 4099889463262
MPN:
RE100-HP
As an alternative, we recommend the following item:
Circuit board, 100 x 160 mm, pitch 2.5 mm, single sided, FR1 hard paper, Cu 35 µm, BYB-3-11H6012
Order No.: 11H6012
Manufacturer: by.B
per pc. 5.9143 € *
*incl. VAT plus shipping costs

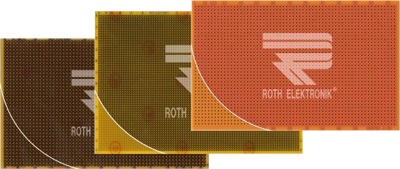

Prototyping board, RE100-HP, Roth Elektronik
With single-sided plating, 2.5 x 2.5 mm perforation matrix. With solder lands, no standardized connector receptacle.
Dimensions: 100 x 160 mm.
Hole diameter: 1.0 mm.
Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP).
Copper plating: 35 µm.
Board thickness: 1.5 mm.
Perforation matrix: 37 x 62 solder lands.
Diameter of solder lands: 2.2 mm.
Technical specifications
| Ausführung | Lochrasterplatte | |
| Breite | 160 mm | |
| Durchkontaktiert | Yes | |
| Ein-/Zweiseitig | einseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR2 Hartpapier | |
| Oberflächenart | Organischem Oberflächenschutz (OSP) | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85340019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
