RE120-HP | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.5 mm, single sided, FR2 hard paper, Cu 35 µm, RE120-HP
Order No.: 10H810
EAN: 4099889462630
MPN:
RE120-HP
Abgekündigt
Unit Price (€ / pc.)
4.1412 € *
Available: 25 pcs.
Leadtime: 12 Weeks **

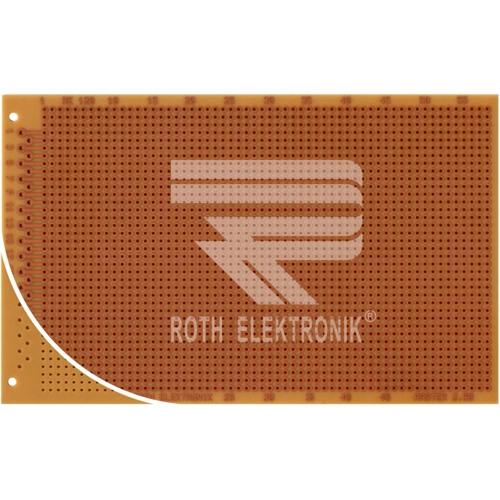

Prototyping board, RE120-HP, Roth Elektronik

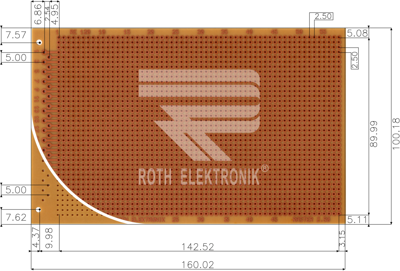

Single-or double-sided, 35 µm copper plating. With option for installing connectors to DIN 41617 (31-pole); Hole matrix: grid 2.5 x 2.5 or 2.54 x 2.54 mm, 37 x 58 solder lands. Diameter of solder lands: 2.2 mm. Hole diameter: 1.0 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Board thickness: 1.5 mm.
Single-sided plating, 2.5 x 2.5 mm grid, type RE120-.
Technical attributes (type, Format, substrate): RE120-HP, 100 x 160 mm, laminated paper.
Technical specifications
| Ausführung | Laborkarte | |
| Breite | 160 mm | |
| Durchkontaktiert | No | |
| Ein-/Zweiseitig | einseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR2 Hartpapier | |
| Oberflächenart | Organischem Oberflächenschutz (OSP) | |
| Rastermaß | 2.5 mm |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85340019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
