RE319-HP | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE319-HP
Order No.: 10H8194
EAN: 4099889462791
MPN:
RE319-HP
Discontinued
Unit Price (€ / pc.)
7.6160 € *
Available: 6 pcs.
Leadtime: 22 Weeks **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.6997 €
100 pcs.
5.8786 €
250 pcs.
5.6406 €
1000 pcs.
5.2836 €
*incl. VAT plus shipping costs
**Subject to prior sale

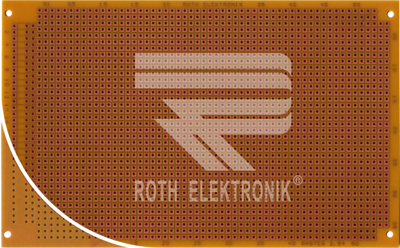

Prototyping board, RE319-HP, Roth Elektronik
Single-sided with 35 µm copper plating. With option for installing connectors to DIN 41612 design C (64-pole; grid: 2.54 mm). Format: 100 x 160 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Grid: 2.54 x 2.54 mm. Hole matrix: 37 x 55 solder lands with 2.2 mm diameter. Hole diameter: 1.0 mm. Board thickness: 1.5 mm.
Technical attributes (type, Format, substrate): RE319-HP, 100 x 160 mm, laminated paper.
Technical specifications
| Version | lab board | |
| Width | 160 mm | |
| Throughplated | No | |
| One / two-sided | single sided | |
| Height | 1.5 mm | |
| copper strength | 35 m | |
| Length | 100 mm | |
| Hole diameter | 1 mm | |
| Material | FR2 hard paper | |
| Surface type | organic surface protection (OSP) | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85340019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
