RE323-LF | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, RE323-LF
Order No.: 10H801
EAN: 4099889462555
MPN:
RE323-LF
As an alternative, we recommend the following item:
Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6014
Order No.: 11H6014
Manufacturer: by.B
per pc. 7.7350 € *
*incl. VAT plus shipping costs

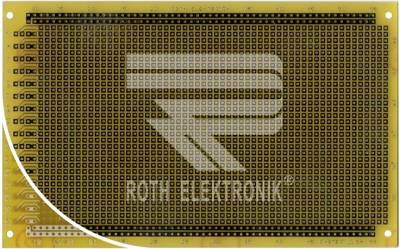

Prototyping board, RE323-LF, Roth Elektronik
Single-sided, 35 µm copper plating. With option for installing connectors to DIN 41612 design D (32-pole), E and F (48-pole); Grid: 2.54 x 2.54 mm. Hole matrix: 32 x 55 solder lands, 2.2 mm². Hole diameter: 1.0 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Board thickness: 1.5 mm.
Technical attributes (type, format, substrate): RE323-LF, 100 x 160 mm, epoxy resin.
Technical specifications
| Ausführung | Laborkarte | |
| Breite | 160 mm | |
| Durchkontaktiert | No | |
| Ein-/Zweiseitig | einseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR4 Epoxid | |
| Oberflächenart | Heißluft-Verzinnung (HAL) | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | BG |
| Zolltarifnummer | 85340019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
