RE520-HP | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE520-HP
Order No.: 10H7740
EAN: 4099889462333
MPN:
RE520-HP
Abgekündigt
Unit Price (€ / pc.)
7.6160 € *
Available: 27 pcs.
Leadtime: 16 Weeks **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.6997 €
100 pcs.
5.8786 €
250 pcs.
5.6406 €
1000 pcs.
5.2836 €
*incl. VAT plus shipping costs
**Subject to prior sale

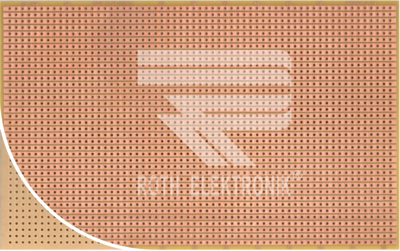

Prototyping board, RE520-HP, Roth Elektronik
Single-sided with 35 µm copper plating; Format: 100 x 160 mm. Hole diameter: 1.0 mm. Substrate: laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Board thickness: 1.5 mm.
2.54 x 2.54 mm grid, type RE520-.
38 PCB traces with 61 holes.
Technical attributes (type, format, substrate): RE520-HP, 100 x 160 mm, laminated paper.
Technical specifications
| Ausführung | Laborkarte | |
| Breite | 160 mm | |
| Durchkontaktiert | No | |
| Ein-/Zweiseitig | einseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR2 Hartpapier | |
| Oberflächenart | Organischem Oberflächenschutz (OSP) | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85340019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
