RE521-HP | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE521-HP
Order No.: 10H8202
EAN: 4099889462821
MPN:
RE521-HP
As an alternative, we recommend the following item:
Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR1 hard paper, Cu 35 µm, BYB-3-11H6030
Order No.: 11H6030
Manufacturer: by.B
per pc. 5.9143 € *
*incl. VAT plus shipping costs

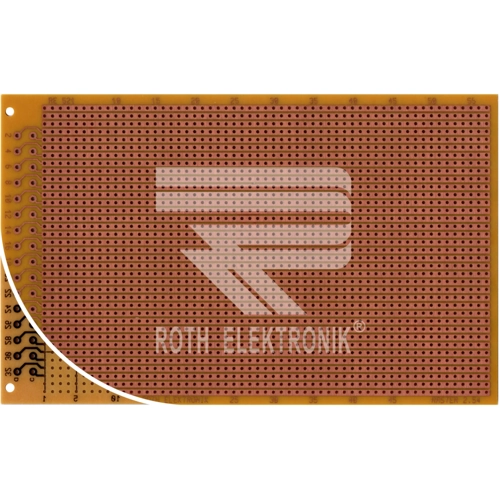

Prototyping board, RE521-HP, Roth Elektronik
Single-sided with 35 µm copper plating. Option for installing connectors to DIN 41612 design C (32-pole; grid: 5.08 mm). Format: 100 x 160 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Grid: 2.54 x 2.54 mm. Hole matrix: 37 PCB traces, each with 57 holes. Hole diameter: 1.0 mm. Board thickness: 1.5 mm, component side with assembly labeling.
Technical attributes (type, format, substrate): RE521-HP, 100 x 160 mm, laminated paper.
Technical specifications
| Version | lab board | |
| Width | 160 mm | |
| Throughplated | No | |
| One / two-sided | single sided | |
| Height | 1.5 mm | |
| copper strength | 35 m | |
| Length | 100 mm | |
| Hole diameter | 1 mm | |
| Material | FR2 hard paper | |
| Surface type | organic surface protection (OSP) | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85340019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
