16TKV820M10X10.5 | Rubycon
Electrolytic capacitor, 820 µF, 16 V (DC), ±20 %, SMD, Ø 10 mm, 16TKV820M10X10.5
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.4403 €
250 pcs.
0.3451 €
1000 pcs.
0.2975 €
2000 pcs.
0.2654 €
*incl. VAT plus shipping costs
**Subject to prior sale

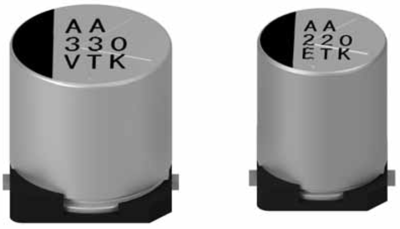

Electrolytic capacitor, 16TKV820M10X10.5, RUBYCON
Aluminum electrolytic capacitor - SMD
Features
- Low ESR
- Load Life: 105℃ 2000 hours
- RoHS-compatible
Applications
- Automotive electronics
- Audio signal circuits
- Optical equipment
- Measuring equipment
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 80 mΩ | |
| Capacity | 820 µF | |
| Length | 10 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 16 V | |
| Ripple current | 510 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
