6.3TKV1500M10X10.5 | Rubycon
Electrolytic capacitor, 1500 µF, 6.3 V (DC), ±20 %, SMD, Ø 10 mm, 6.3TKV1500M10X10.5
Unit Price (€ / pc.)
0.7497 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
10 pcs.
0.5355 €
100 pcs.
0.4522 €
500 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 6.3TKV1500M10X10.5, RUBYCON

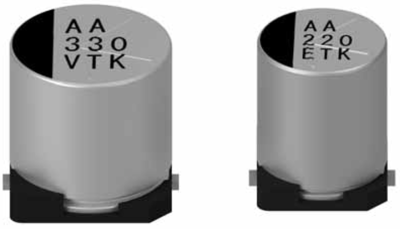

Aluminum electrolytic capacitor - SMD
Features
- High rated capacitance
- RoHS-compatible
- Long useful life
Applications
- Automotive electronics
- Audio signal circuits
- Optical equipment
- Measuring equipment
Technical specifications
| Version | polar | |
| Design | SMD | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 60 mΩ | |
| Capacity | 1500 µF | |
| Length | 10 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 6.3 V | |
| Ripple current | 714 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
