63RX3047M10X12.5 | Rubycon

Electrolytic capacitor, 47 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, 63RX3047M10X12.5

Order No.: 12D6685
EAN: 4099879871527
MPN:
63RX3047M10X12.5
Series: RX30
Rubycon
63RX3047M10X12.5 Rubycon Electrolytic Capacitors
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Available: 5,849 pcs.
Leadtime: On Request **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.4284 €
250 pcs.
0.3451 €
1000 pcs.
0.2975 €
2000 pcs.
0.2630 €
*incl. VAT plus shipping costs
**Subject to prior sale

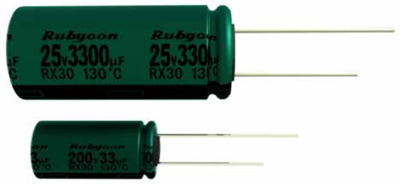

Aluminium electrolytic capacitor, 63RX3047M10X12.5, RUBYCON

Radial aluminium electrolytic capacitor

Features

  • Load Life: 130℃ 1000-4000 hours
  • AEC-Q200
  • RoHS compliance

Applications

  • Automotive
  • LED Lighting
Technical specifications
Version polar
Design radial
diameter 10 mm
Capacity 47 µF
Length 12 mm
max. operating temperature 130 °C
min. operating temperature -40 °C
Rated voltage (DC) 63 V
Grid 5 mm
Ripple current 400 mA
Tolerance ±20 %
Logistics
Country of origin JP
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
