SA 70823 201 060 | Saft

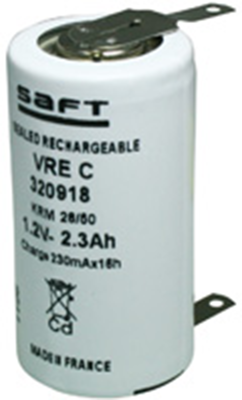

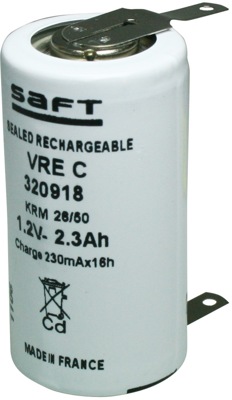

Nickel-cadmium-battery, 1.2 V, 2.3 Ah, KR14, C, soldering lug, SA 70823 201 060
Order No.: 26A6716
EAN: 4099891652647
MPN:
SA 70823 201 060
Discontinued
Unit Price (€ / pc.)
8.4966 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
8.50 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4966 €
5 pcs.
7.8659 €
10 pcs.
7.3066 €
25 pcs.
6.8425 €
*incl. VAT plus shipping costs
**Subject to prior sale
NiCd accumulators with special contacts, type Saft VR../VRE.
Suitable for use as round cell in heatshrink tubing
With tap type D1, type VR.
With two solder lugs in one direction; same design for minus and plus poles.
Technical specifications
| Connection | soldering lug | |
| Usage | general applications | |
| diameter | 25.15 mm | |
| Size | C | |
| Height | 49.1 mm | |
| IEC designation | KR14 | |
| max. operating temperature | 50 °C | |
| min. operating temperature | 0 °C | |
| Nominal capacity | 2.3 Ah | |
| Rated voltage | 1.2 V | |
| other designation | baby | |
| Technology | nickel-cadmium |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85073020 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
