TD 225-0.1US | Sauter
Ultrasonic material thickness tester
Order No.: 22K1818
EAN: 4045761140097
MPN:
TD 225-0.1US
Unit Price (€ / pc.)
548.2925 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: On Request **

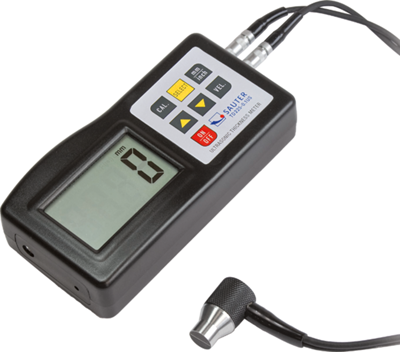

Ultrasonic material thickness meters, type Sauter TD 225-0.1 US.
For hard materials such as steel, aluminum, copper, brass, homogeneous plastic etc. With RS-232C interface; Sound velocity: 500 to 9000 m/s. Measuring range: 1.2 to 225 mm. Resolution: 0.1 mm. Measuring probe: 5.0 MHz. Cable length: 1.0 m. Dimensions: L 120, W 62, H 30 mm. Weight: 164 g. Supplied with carrying case, calibrating tool, 4 x AAA batteries.
Type: TD 225–0.1 US, material thickness meter
Technical specifications
| Product type | Ultraschall-Materialdickenmessgerät | |
| measurement range | 1,2 bis 225 mm | |
| Accuracy | ±0,5 % | |
| Resolution | 0,1 μm |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
