FN2010-10-06 | Schaffner

1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, faston plug 6.3 mm, FN2010-10-06

Order No.: 71D0003
EAN: 7612774454731
MPN:
FN2010-10-06
800557
Series: FN2010

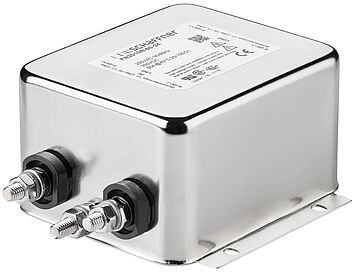

FN2010-10-06 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
11.7334 € *
Available: 0 pcs.
Available in 5 Days: 1,200 pcs.
Leadtime: 7 Weeks **
Total Price:
704.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
60 pcs.
11.7334 €

Single-stage filter, FN2010-10-06, SCHAFFNER

General purpose AC/DC EMI filter

Features

  • General purpose filtering performance
  • Optional enhanced performance version
  • Optional DC optimized version
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Medical equipment
  • Office automation equipment
  • Datacom equipment
Technical specifications
ohmscher Widerstand 1 MΩ
Anschluss Flachstecker 6,3 mm
Anzahl der Phasen 1
Ausführung 1-Stufen Filter
Bemessungsspannung 250 VAC
Induktivität pro Leitung 800 µH
integrierter Schalter No
Kapazität X|Y X2 100 nF, Y2 4,7 nF
max. Frequenz 400 Hz
max. Temperatur 100 °C
min. Frequenz 50 Hz
min. Temperatur -25 °C
Mit Sicherung No
Nennspannung (DC) 250 V
Nennstrom 10 A
Logistics
Ursprungsland CN
Zolltarifnummer 85363010
Originalverpackung Karton mit 60 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
