FN2090B-20-08 | Schaffner

2-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 2.7 mH, threaded bolt M4, FN2090B-20-08

Order No.: 71D0230
EAN: 7612774467489
MPN:
FN2090B-20-08
802998
Series: FN2090

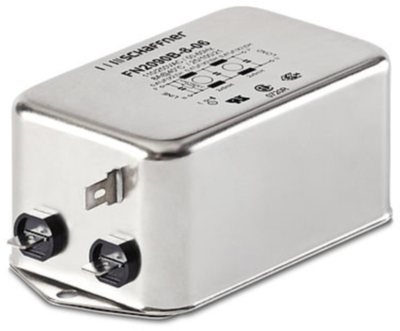

FN2090B-20-08 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
72.7209 € *
Available: 0 pcs.
Available in 5 Days: 60 pcs.
Leadtime: 10 Weeks **
Total Price:
727.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
72.7209 €

Two-stage filter, FN2090B-20-08, SCHAFFNER

Multi-stage AC/DC EMI filter with excellent attenuation performance.

Features

  • Very high differential and common-mode attenuation
  • Two-stage filter
  • Rated currents from 1 to 30 A
  • Optional medical version
  • Optional enhanced performance version
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Building automation
  • Industrial application
  • Machinery
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
Technical specifications
ohmscher Widerstand 220 kΩ
Anschluss Gewindebolzen M4
Anzahl der Phasen 1
Ausführung 2-Stufen Filter
Bemessungsspannung 250 VAC
Induktivität pro Leitung 2.7 mH
integrierter Schalter No
Kapazität X|Y X1 1 µF
max. Frequenz 400 Hz
max. Temperatur 100 °C
min. Frequenz 50 Hz
min. Temperatur -25 °C
Mit Sicherung No
Nennspannung (DC) 250 V
Nennstrom 20 A
Logistics
Ursprungsland CN
Zolltarifnummer 85363010
Originalverpackung Karton mit 10 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
