FN284-4-06 | Schaffner
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN284-4-06
Unit Price (€ / pc.)
33.4985 € *
Available: 63 pcs.
Available in 5 Days: 1,379 pcs.
Leadtime: 24 Weeks **
Total Price:
33.50 € *
Price list
Quantity
Price per unit*
1 pcs.
33.4985 €
5 pcs.
31.4874 €
40 pcs.
28.2744 €
80 pcs.
27.4771 €
160 pcs.
26.6560 €
*incl. VAT plus shipping costs
**Subject to prior sale

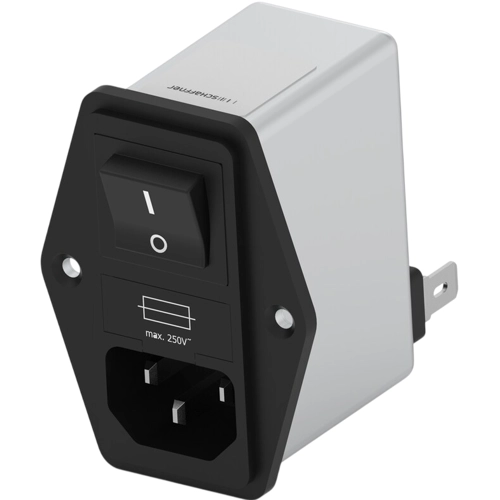

IEC inlet filter with toggle switch and fuse holder, type Schaffner FN 280.
For vertical (top and bottom mounting holes), horizontal (left and right mounting holes), or snap-in mounting, double-pole toggle switch and fuse holder with comfortable access for installation of one or two 5 x 20 mm fuses; Capacitance: Cx 220 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.
For horizontal screw mounting, type FN 283/FN 284.
FN 283: 1 fuse. FN 284: 2 fuses.
Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance): FN 284-4-06, 4.0/4.8 A, 1.0 mH
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| Version | IEC inlet filter C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 1 mH | |
| integrated switch | Yes | |
| Capacity X|Y | X2 220 nF, Y2 2.2 nF | |
| max. frequency | 400 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | Yes | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
