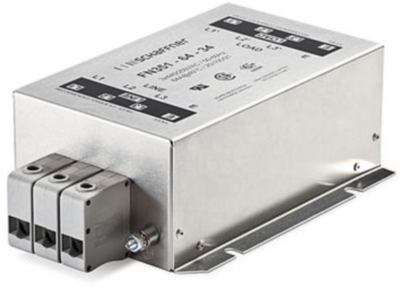

FN351H-50-33 | Schaffner
EMC filter, 60 Hz, 50 A, 3x 520/300 VAC, 30 kW, terminal block, FN351H-50-33
Unit Price (€ / pc.)
337.3174 € *
Available: 0 pcs.
Available in 5 Days: 484 pcs.
Leadtime: 7 Weeks **
3-Phase filter, FN351H-50-33, SCHAFFNER
General purpose EMC filter
Features
- EMC solution for industrial inverters and motor drive
- High differential and common-mode attenuation
- Solid, touch-safe filter terminals contribute to overall equipment safety
Applications
- Three-phase motor drive
- Inverters and converters
- Industrial automation equipment
- UPS
- SMPS
Technical specifications
| Connection | terminal block | |
| Number of phases | 3 | |
| Version | EMC filter | |
| Rated Voltage | 3x 520/300 VAC | |
| Power | 30 kW | |
| max. frequency | 60 Hz | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 50 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 5 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
