FN356-25-33 | Schaffner

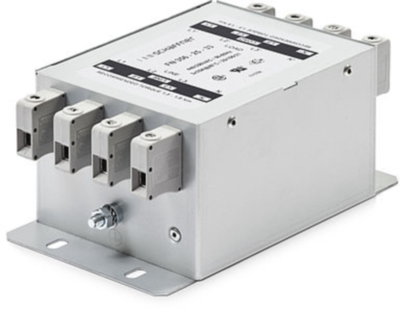

EMC/EMI filter, 25 A, 3x 440/250 VAC, terminal block, FN356-25-33
Unit Price (€ / pc.)
299.2731 € *
Available: 0 pcs.
Leadtime: On Request **
3-Phase/Neutral line filter, FN356-25-33, SCHAFFNER
General purpose EMC/EMI line filter
Features
- Three-phase and neutral line filter for general four-wire filtering tasks
- Choice of connection style
- Low operating leakage current
Applications
- General purpose four-wire filtering
- Mainframe computer system
- High power office equipment
- UPS
- Installations comprising automation equipment
Technical specifications
| Connection | Klemmleiste | |
| Number of phases | 3 | |
| Version | EMC/EMI Filter | |
| Rated Voltage | 3x 440/250 VAC | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 25 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 8 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
