FN382B-4-22 | Schaffner
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 300 µH, solder connection, FN382B-4-22
Unit Price (€ / pc.)
32.0348 € *
Available: 0 pcs.
Leadtime: On Request **

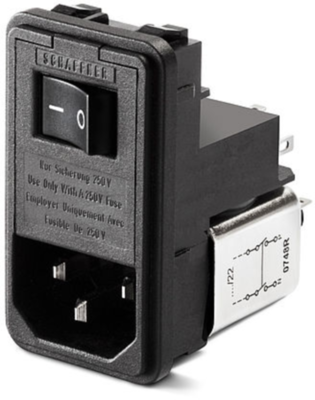

IEC inlet filter, FN382B-4-22, SCHAFFNER
The FN382B-4-22 is a power entry module combines an IEC inlet, a mains filter with asingle or dualfuse holder and a 2-pole rocker switch. This product include wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
Features
- Single or dual-fuse holder
- General purpose application
- Custom-specific version
Applications
- Portable electrical and electronic equipment
- EDP and office equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
- Medical equipment
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | Lötanschluss | |
| Number of phases | 1 | |
| Version | IEC-Eingangsfilter-C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 300 µH | |
| integrated switch | Yes | |
| Capacity X|Y | X2 47 nF | |
| max. frequency | 400 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | Yes | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 40 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
