FN9222-10-06 | Schaffner

IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 225 µH, faston plug 6.3 mm, FN9222-10-06

Order No.: 71D146
EAN: 4099889075670
MPN:
FN9222-10-06
803745
Series: FN9222
Schaffner

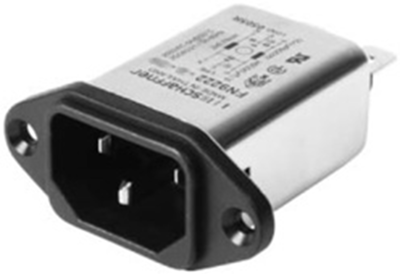

FN9222-10-06 Schaffner Interference suppression filter Image 1

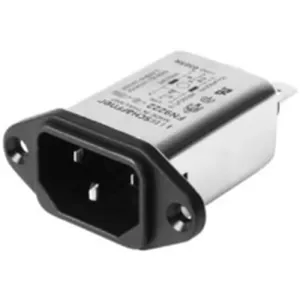

FN9222-10-06 Schaffner Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
9.0440 € *
Available: 56 pcs.
Available in 5 Days: 5,997 pcs.
Leadtime: 7 Weeks **
Total Price:
9.04 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0440 €
10 pcs.
7.9611 €
120 pcs.
6.9853 €
240 pcs.
6.7116 €
960 pcs.
6.2713 €
*incl. VAT plus shipping costs
**Subject to prior sale

IEC inlet filter, type Schaffner FN 9222.

High attenuation values with compact housing dimensions, for horizontal screw mounting; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14, CQC.

Technical attributes (type, rated current at+40 °C/+25 °C, rated inductance): FN 9222-10-06, 10/11.6 A, 0.225 mH

Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 225 µH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 400 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated current 10 A
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
