IL13-C14-H05-3100-200 | Schaffner

Device connection line, International, C14-plug, straight on C13 socket, straight, H05VV-F3G1.0 mm², black, 2 m, IL13-C14-H05-3100-200

Order No.: 71D1783
EAN: 4099891096021
MPN:
IL13-C14-H05-3100-200
812285
Series: IL13
Schaffner
IL13-C14-H05-3100-200 Schaffner Power Cords
Image may differ
Unit Price (€ / pc.)
7.6517 € *
Available: 0 pcs.
Available in 5 Days: 611 pcs.
Leadtime: 4 Weeks **
Total Price:
7.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
7.6517 €

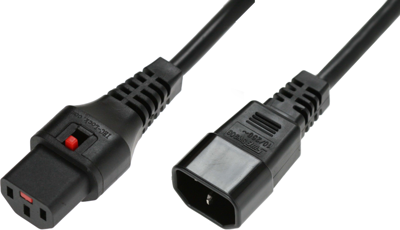

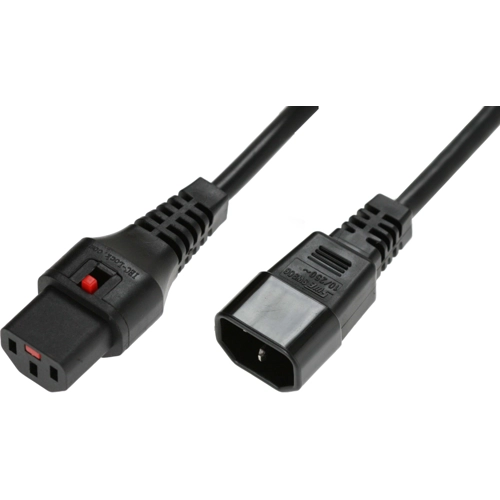

Power cord, IL13-C14-H05-3100-200, SCHAFFNER

IEC cable assembly with locking system for IEC C14 inlet. The locking system has a tensile force of typical 200N. Schaffner power cord with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet.

Features

  • Power cord with locking system
  • Protection class I
  • Fits the complete Schaffner IEC inlet filter
  • Max. pin temperature 70°C

Applications

  • Data centers
  • Industrial equipment
  • Medical devices
  • Broadcasting stations
  • Mobile applications
Technical specifications
Connection (1) C14-plug, straight
Connection (2) C13 socket, straight
Version power cord
AWG cross-section AWG 18
Colour black
Cable type H05VV-F3G1.0 mm²
Cable length 2 m
Country code International
Cable cross-section 1.0 mm²
Rated current 10 A
Standard connection 1 IEC 60320
Standard connection 2 IEC 60320
Logistics
Country of origin CN
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
