IL13-UK1-H05-3100-200 | Schaffner

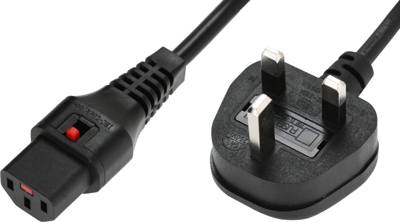

Device connection cable, UK, plug type G, angled on C13 socket, straight, H05VV-F3G1.0 mm², black, 2 m, IL13-UK1-H05-3100-200

Order No.: 71D1790
EAN: 4099891096076
MPN:
IL13-UK1-H05-3100-200
812283
Series: IL13

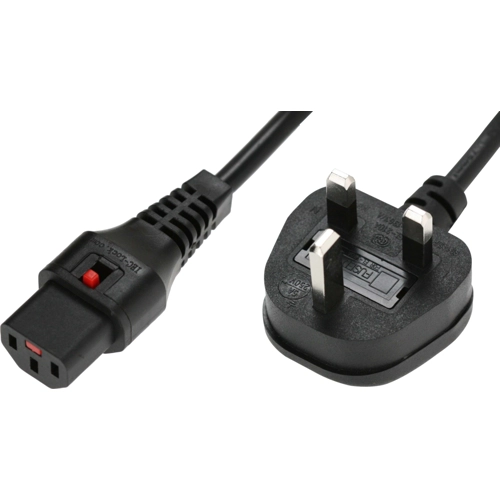

IL13-UK1-H05-3100-200 Schaffner Power Cords
Image may differ
Unit Price (€ / pc.)
8.092 € *
Available: 0 pcs.
Available in 5 Days: 224 pcs.
Leadtime: 4 Weeks **
Total Price:
809.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
8.092 €

Power cord, IL13-UK1-H05-3100-200, SCHAFFNER

IEC cable assembly with locking system for IEC C14 inlet. The locking system has a tensile force of typical 200N. Schaffner power cord with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet.

Features

  • Power cord with locking system
  • Protection class I
  • Fits the complete Schaffner IEC inlet filter
  • Max. pin temperature 70°C

Applications

  • Data centers
  • Industrial equipment
  • Medical devices
  • Broadcasting stations
  • Mobile applications
Technical specifications
Anschluss (1) Stecker Typ G, abgewinkelt
Anschluss (2) C13-Dose, gerade
Ausführung Geräteanschlussleitung
Farbe schwarz
Kabel H05VV-F3G1,0 mm²
Kabellänge 2 m
Landeskennung Großbritannien
Leiterquerschnitt 1,0 mm²
Nennstrom 10 A
Norm Anschluss 1 BS 1363
Norm Anschluss 2 IEC 60320
Logistics
Ursprungsland CN
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
