NSYAECPFLT25 | Schneider Electric

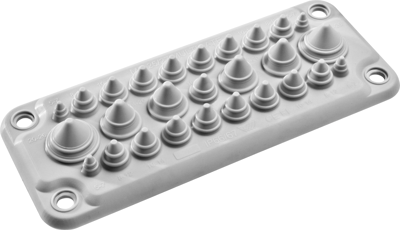

Cable entry plate, TPE, (L x W x H) 88 x 214 x 30 mm, gray, NSYAECPFLT25

Order No.: 02P0232
EAN: 3606480169052
MPN:
NSYAECPFLT25
Series: Spacial SF
NSYAECPFLT25 Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
22.2054 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
22.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.2054 €

Cable entry membrane, NSYAECPFLT25, Schneider Electric

Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 27 entrances allow multi-purpose use with cables ranging from 5 mm to 26 mm in diameter. The 27 entry diameter are the following: 4 entry ranging from 5 mm to 7 mm, 4 entry ranging from 8 mm to 12 mm, 13 entry ranging from 10 mm to 14 mm, 4 entry ranging from 14 mm to 20 mm and 2 entry ranging from 20 mm to 26 mm. IP66 protection against water and dust is maintained according to IEC 60529.

The product can be used in a temperature range from -40 ºC to +100 ºC and have a flame resistance of 650 ºC according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Breite 214 mm
Farbe grau
Höhe 30 mm
Länge 88 mm
Material TPE
Produkt-Art Kabeleinführungsplatte
Schutzart (IP) IP66
Logistics
Ursprungsland FI
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
