NSYAECPFLT35 | Schneider Electric

Cable entry plate, TPE, (L x W x H) 88 x 214 x 40 mm, gray, NSYAECPFLT35

Order No.: 02P0233
EAN: 3606480169045
MPN:
NSYAECPFLT35
Series: Spacial SF
Schneider Electric
NSYAECPFLT35 Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
22.8599 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.8599 €

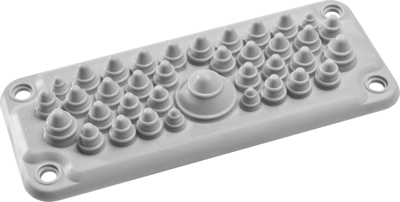

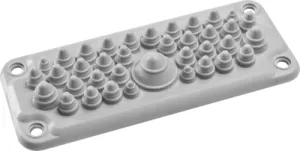

Cable entry membrane, NSYAECPFLT35, Schneider Electric

Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 37 entrances allow multi-purpose use with cables ranging from 6 mm to 32 mm in diameter. The 37 entry diameter are the following: 4 entry ranging from 6 mm to 10 mm, 14 entry ranging from 8 mm to 12 mm, 16 entry ranging from 10 mm to 14 mm, 2 entry ranging from 12 mm to 18 mm and 1 entry ranging 17 mm to 32 mm. IP66 protection against water and dust is maintained according to IEC 60529.

The product can be used in a temperature range from -40 ºC to +100 ºC and have a flame resistance of 650 ºC according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Width 214 mm
Colour gray
Height 40 mm
Length 88 mm
Material TPE
Degree of protection (IP) IP66
Accessory Type cable entry plate
Logistics
Country of origin FI
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
