NSYBRF8PLAG | Schneider Electric
Fixed frame, sheet steel, (W x H) 750 x 500 mm, 8 U, gray, for PLA enclosure, NSYBRF8PLAG
Unit Price (€ / pc.)
108.9445 € *
Available: 0 pcs.
Leadtime: On Request **
Fixed chassis, NSYBRF8PLAG, Schneider Electric

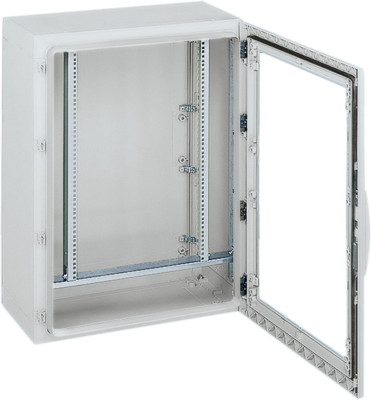

Fixed chassis allow mounting rackable electronic equipment with 19" server racks in Thalassa PLA enclosures. The nominal height is 500 mm Supports mounting of 8 units the kit supplied with fixing elements and 2 19" uprights the strips are manufactured from 2 mm grey sheet steel (RAL 7035). The product is be mounted on front of enclosure Anti-corrosion protection is ensured by epoxy-polyester powder coating the permanent permissible load is 3kg per unit. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 750 mm | |
| Colour | gray | |
| Suitable for | PLA enclosure | |
| Height | 500 mm | |
| Material | sheet steel | |
| cutting pitch differential | 8 U | |
| Accessory Type | fixed frame |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
