NSYCCOFST90250V | Schneider Electric

Controller, (L x W x H) 49.75 x 80 x 80 mm, NSYCCOFST90250V

Order No.: 02P0326
EAN: 3606481369444
MPN:
NSYCCOFST90250V
Series: CLIMASYS CC
NSYCCOFST90250V Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
277.4961 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
277.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
277.4961 €

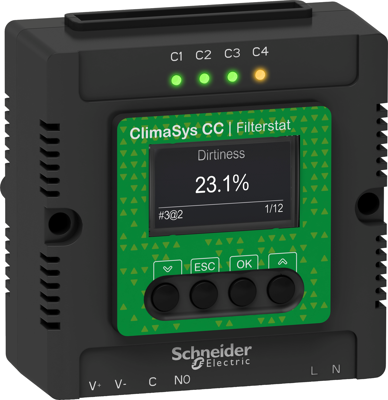

Filterstat controller, NSYCCOFST90250V, Schneider Electric

CSVS Filterstat Controller (90-250 V, AC, 50/60 Hz). 4 connections for sensors and thermal hubs (for network expansion up to 256 sensors). Potential free relay contact 5A SPST To realize alarms in case of overheating, completely dirty filters, defective or worn fans and other events. Analog contact (V+ V-) 0 -10 V, signal indicates the degree of contamination of the filter from 0 -100 %. Size 80x80x41 mm. Operating temperature -40 - +70 °C.

Shows all data relevant for maintenance directly in the display at the control cabinet, or can be coupled e.g. with a PLC to provide data for remote maintenance. For mounting on the top-hat rail (7.5 mm). For mounting in sheet metal (cut-out in doors, side or rear walls), a mounting frame (IP55) must be ordered additionally.

Technical specifications
Breite 80 mm
Höhe 80 mm
Länge 49.75 mm
Produkt-Art Controller
Logistics
Ursprungsland ES
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
