NSYCR10WU2 | Schneider Electric

Heater, aluminum, (W x H x D) 25 x 85 x 57 mm, NSYCR10WU2

Order No.: 02P0421
EAN: 3606480152115
MPN:
NSYCR10WU2
Series: CLIMASYS CR
NSYCR10WU2 Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
29.6191 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
29.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.6191 €

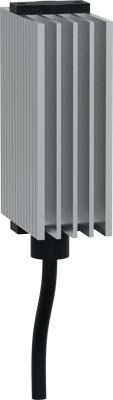

Heating resistance, NSYCR10WU2, Schneider Electric

Resistance heater 10 W, 110-250 V AC 50/60 Hz for ClimaSys CR Thermal Management System. The product has extruded aluminium body fixing by clips in vertical operating position. The product width is 25 mm, height 85 mm and depth 57 mm. The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure.

The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit the cable 2 x 0,75 mm² 300mm length is used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Breite 25 mm
Höhe 85 mm
Material Aluminium
Produkt-Art Heizung
Schutzart (IP) IP20
Tiefe 57 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85168080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
