NSYDLA48PG | Schneider Electric

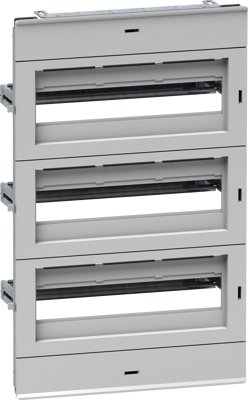

Modular distribution chassis, NSYDLA48PG, Schneider Electric

DLA chassis for Spacial S3D, Spacial CRN, Spacial S3X and Thalassa PLM enclosures. The chassis is to be fixed on front of enclosure by fixing elements with supports location the width is 360 mm, height 580 mm number of 18 mm modules is 48 (1 module = 2 steps = 18 mm). Number of horizontal rows is 3. The depth of the chassis can be adjusted in height from 40 to 85 mm for DIN rail.

The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel the front has a grey (RAL 7035) color Number of cut-outs is 3. The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 3 front panels with 35 mm DIN rails.
