NSYDLS24 | Schneider Electric
Modular distribution frame, 24 modules, steel, pebble gray, for PLS enclosure, NSYDLS24
Unit Price (€ / pc.)
35.3549 € *
Available: 0 pcs.
Leadtime: On Request **

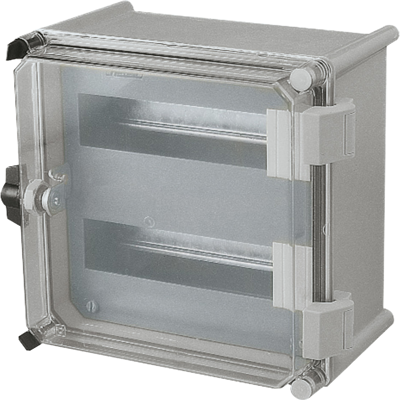

Modular distribution chassis, NSYDLS24, Schneider Electric
DLS chassis for Thalassa PLS enclosures. The chassis is to be fixed on front of enclosure by fixing elements with supports location Number of 18 mm modules is 24Number of horizontal rows is 2. The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel the front has a grey (RAL 7032).
The kit is made up of 1 chassis structure, 1 front panel and 2 35 mm DIN rails. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Version | 24 modules | |
| Colour | pebble gray | |
| Suitable for | PLS enclosure | |
| Material | steel | |
| Accessory Type | modular distribution frame |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
