NSYEC641 | Schneider Electric
Cable entry plate, galvanized steel, (L x W x H) 400 x 600 x 30 mm, NSYEC641
Unit Price (€ / pc.)
30.107 € *
Available: 0 pcs.
Leadtime: On Request **

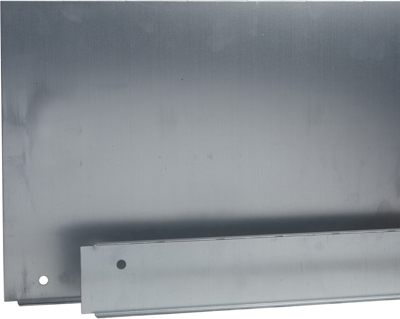

Entry cable gland plate, NSYEC641, Schneider Electric
Multi-purpose cable gland plate with 1 entry for Spacial SF enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 600 mm and useful width is 416 mm. The height is 30 mm, the nominal depth is 400 mm and real depth is 450 mm the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 600 mm | |
| Height | 30 mm | |
| Length | 400 mm | |
| Material | galvanized steel | |
| Accessory Type | cable entry plate |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
