NSYMF54 | Schneider Electric

Mounting plate, galvanized steel, (L x W x H) 125 x 350 x 465 mm, silver, NSYMF54

Order No.: 02P1101
EAN: 3606480183065
MPN:
NSYMF54
Series: Spacial CRN
Schneider Electric
NSYMF54 Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
23.5858 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
23.5858 €

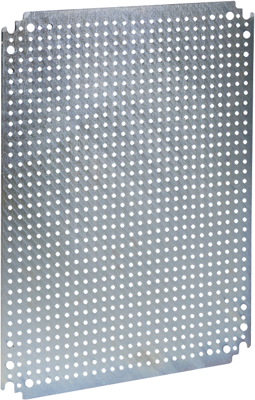

Microperforated mounting plate, NSYMF54, Schneider Electric

Microperforated mounting plate for Spacial CRN, S3D, S3X and Thalassa PLM. The dimensions are (H) 500 mm x (W) 400 mm. Dimensions are reversible it can be installed in enclosure with inverted dimensions. This mounting plate have 3,6 mm diameter holes with a 12,5 mm pitch which allow multi-purpose mounting accessory.

It can be fixed using step slide mounting location or by direct fixing on backstuds (M8 screws). Made of galvanised steel, making it durable and resistant, the permanent permissible load is 90 kg. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Width 350 mm
Colour silver
Height 465 mm
Length 125 mm
Material galvanized steel
Accessory Type mounting plate
Logistics
Country of origin ES
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
