NSYPAP43G | Schneider Electric
Interior door, polyester, (W x H) 205 x 315 mm, gray, NSYPAP43G
Unit Price (€ / pc.)
46.0887 € *
Available: 0 pcs.
Leadtime: On Request **

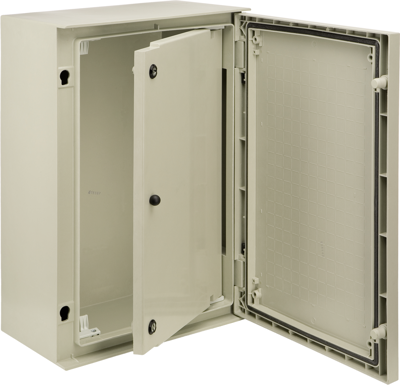

Reversible internal door, NSYPAP43G, Schneider Electric
Internal plain door for Thalassa PLM The product is to be mounted on front side of the enclosure. The grid pattern width is 205 mm, the grid pattern height is 315 mm, the available depth between enclosure door depth is 26 mm and available depth between rear depth is 152 mm.
The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20 Hinges left or right (110 ° opening angle) the door has 2 locks with 5 mm double bar. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 205 mm | |
| Colour | gray | |
| Height | 315 mm | |
| Material | polyester | |
| Accessory Type | interior door |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
