NSYPFPLMG | Schneider Electric
Wall mounting bracket kit, PA, gray, for PLM3025, NSYPFPLMG
Unit Price (€ / pc.)
17.374 € *
Available: 6 pcs.
Leadtime: On Request **

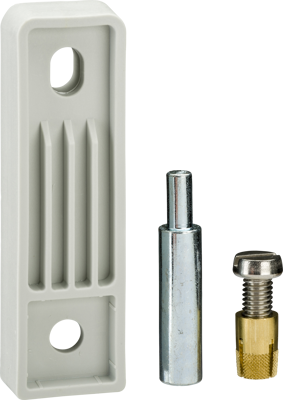

Set of 4 polyamid wall mounting lugs, NSYPFPLMG, Schneider Electric
Set of 4 polyamide wall mounting lugs for Thalassa PLM3025, PLM43, PLM54, PLM64, PLM75, PLM86 and PLM108. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Permanent permissible load is 200 kg in vertical position and 100 kg in horizontal position. The lugs are made from polyamide 6 with 30 % fiber glass.
This product is qualified as a green premium, with minimal use of hazardous substances. The color is grey RAL 7035. Fixings are delivered with the lugs.
Technical specifications
| Colour | gray | |
| Suitable for | PLM3025 | |
| Material | PA | |
| Accessory Type | wall mounting bracket kit |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
