NSYSPF10200 | Schneider Electric
Base front part, sheet steel, (W x H) 1000 x 200 mm, umbra gray, NSYSPF10200
Unit Price (€ / pc.)
102.7922 € *
Available: 0 pcs.
Leadtime: On Request **
Base front part, NSYSPF10200, Schneider Electric

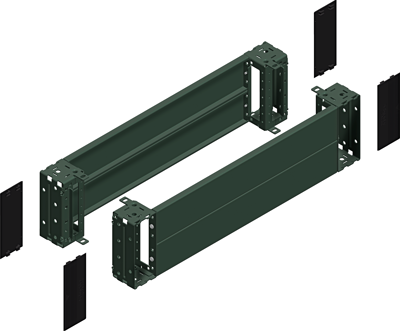

Plinth front to be used with Spacial SF, Spacial SM, Spacial SD, Spacial S3D and Spacial CRN enclosures. The plinth front is to be used in multi-purpose applications. The nominal width is 1000 mm, the height is 200 mm. The kit is made of fixing elements, 4 corner covers, 4 corners, 2 front panels and 2 rear panels. The product is made of grey Steel (RAL 7022). Anti-corrosion protection is ensured by an epoxy-polyester powder coating. Ingress protection rating is IP30 (complete plinth), mechanical protection rating is IK10 Permanent permissable load is 1300 kg. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 1000 mm | |
| Colour | umbra gray | |
| Height | 200 mm | |
| Material | sheet steel | |
| Degree of protection (IP) | IP30 | |
| Accessory Type | base front part |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
