NSYVA2712M | Schneider Electric
Viewing window, PC, (L x W x H) 15 x 235 x 78 mm, transparent, for enclosure, NSYVA2712M
Unit Price (€ / pc.)
11.3645 € *
Available: 0 pcs.
Leadtime: On Request **

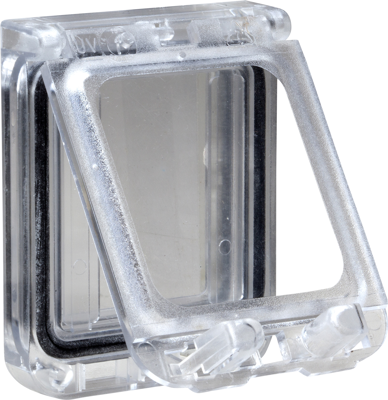

Plastic window, NSYVA2712M, Schneider Electric
Transparent polycarbonate multi-purpose window for modular equipment for installation on door or panel in Thalassa PLA, Thalassa PLM, Spacial S3D, Spacial CRN and Thalassa PLS enclosures. Opening width is 235 mm, height is 78 mm and depth is 15 mm (12 modules). The kit is made up of 1 complete window. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Breite | 235 mm | |
| Farbe | transparent | |
| Geeignet für | Gehäuse | |
| Höhe | 78 mm | |
| Länge | 15 mm | |
| Material | PC | |
| Produkt-Art | Sichtfenster | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
