NSYZZ274VHD | Schneider Electric
Enclosure base, plastic, (L x W x H) 420 x 750 x 200 mm, light gray, NSYZZ274VHD
Unit Price (€ / pc.)
710.6442 € *
Available: 0 pcs.
Leadtime: On Request **

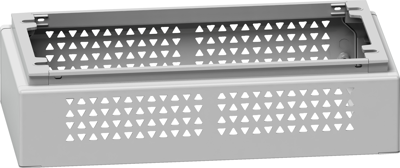

Enclosur base, NSYZZ274VHD, Schneider Electric
Ventilated plinth for outdoor heavy duty applications to be used with Thalassa PHD enclosures. The ventilated plinth is to be used in multi-purpose applications. The width is 750 mm, the height is 200 mm, the depth is 420 mm. The kit is made of fixing elements, 2 front panels, 2 side parts and 1 stainless steel anti-insect filter. The product is made of grey plastic (RAL 7035). Ingress protection rating is IP55 conforming to IEC 60529 (completed plinth with grille and filter).
Mechanical protection rating is IK10 conforming to IEC 62262. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 750 mm | |
| Colour | light gray | |
| Height | 200 mm | |
| Length | 420 mm | |
| Material | plastic | |
| Degree of protection (IP) | IP55 | |
| Accessory Type | enclosure base |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
