Daisy chain connection block for Lexium 62 ILM, L 265 mm, ILM62DCC000
Unit Price (€ / pc.)
419.475 € *
Available: 0 pcs.
Leadtime: 1 Week **

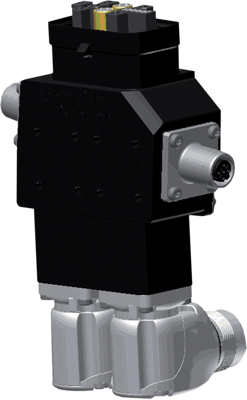

Connection box, ILM62DCC000, Schneider Electric
This product is part of the PacDrive 3 range, an offer of connection boxes for Lexium 62 ILM daisy chains. This type C connection box for Lexium 62 ILM daisy chains. Its dimensions are 255 mm (width) x 102 mm (depth) x 265 mm (height). It weighs 0.535 kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Technical specifications
| Version | daisy chain connection block | |
| Suitable for | Lexium 62 ILM | |
| Length | 265 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
