A9E18325 | Schneider Electric

Signal light, illuminable, green/red, A9E18325

Order No.: 01P7225
EAN: 4099889224573
MPN:
A9E18325
Series: ilL
Schneider Electric
A9E18325 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
28.8337 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
28.8337 €

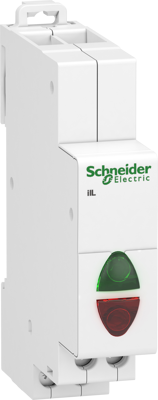

Signal light, A9E18325, Schneider Electric

This Acti9 iIL accessory is a double modular pilot light fixed on DIN rail. It has at front face a green and a red LEDs of 0.3 W with a service life of 100000 hours. The Us rated supply voltage is 100 VAC to 230 VAC at a 50/60Hz frequency, or is 110 VDC to 130 VDC.

Technical specifications
Version signal light
Type of mounting DIN rail
can be illuminated Yes
Actuator colour green/red
Protection class IP20
Logistics
Country of origin BE
Customs tariff number 85319000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
